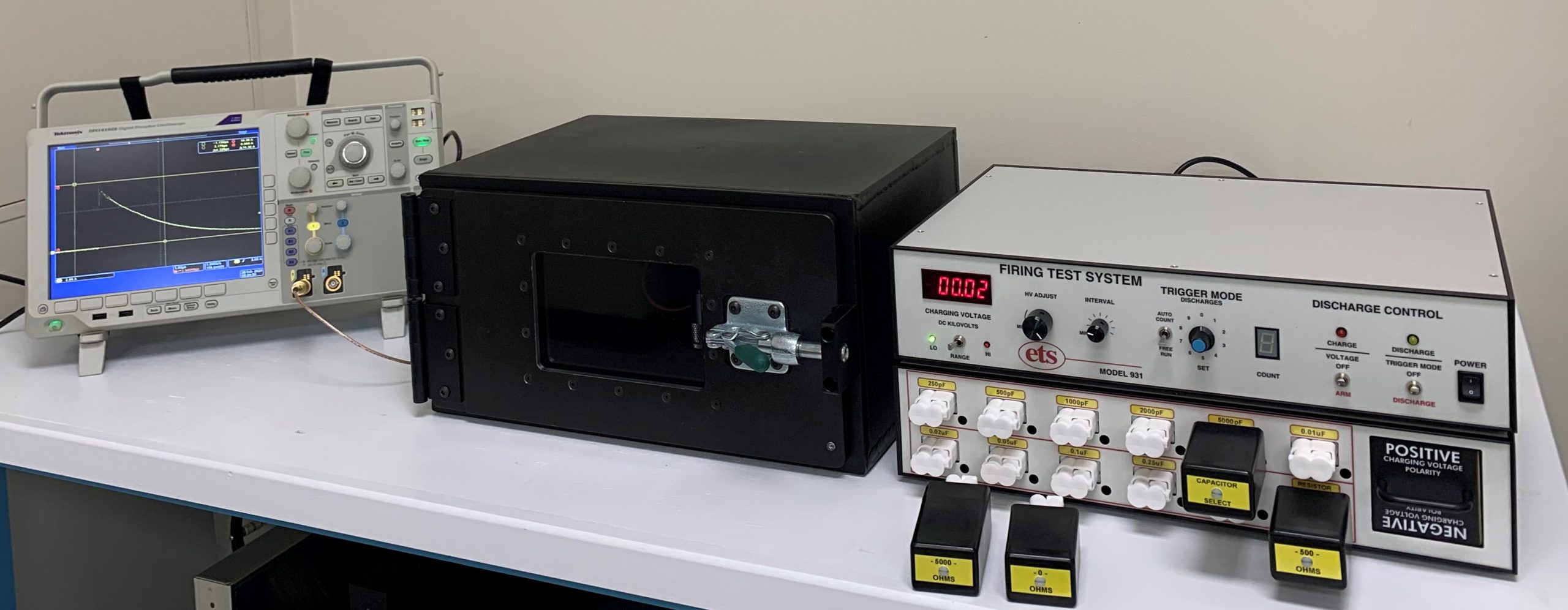

Model 930D-FTS Benchtop Firing Test Set ESD Simulator / ESD Generator

Overview:

The Model 930D-FTS is an Electrostatic Discharge Simulator designed to test the ESD susceptibility level of ordnance and explosive devices such as pyrotechnic automotive pretensioner and airbag systems. This instrument incorporates the same versatile features as the Model 930D Discharge Simulator plus incorporates a discharge unit base for benchtop use. The Model 930D-FTS can be customized to meet virtually any ESD or high voltage discharge pulse generator application.

Features:

• Voltage range: ±100 – ±26,000V (Optional: Up to ±30,000V)
• Contact and Air Discharge capabilities
• Remote discharge capability
• High Quality waveform where accuracy counts
• Test data is stored in memory and can be easily downloaded.
• Custom discharge network modules are available
• Numerous mounts and fittings available for gun positioning
• System comes packaged in an industrial carrying case
• Plug-in R/C networks test in accordance with HBM, IEC, and MIL Standards
• Optional E & H-Field Probes
• Optional IEC Test Target

Standards:

• ANSI/ESDA/JEDEC JS-001-2023
• IEC 61000-4-2
• MIL-STD-883, MIL-STD-883-3, Method 3015.9

R/C NETWORK OPTIONS:

• HBM RC Network: 1.5kΩ Resistor, 100pF capacitor
• IEC HMM (Human Metal Model) Network: 330Ω Resistor, 150pF Capacitor
• Mil-Discharge RC Network: 0Ω, 500Ω, and 5kΩ Resistors, 500pF Capacitor
