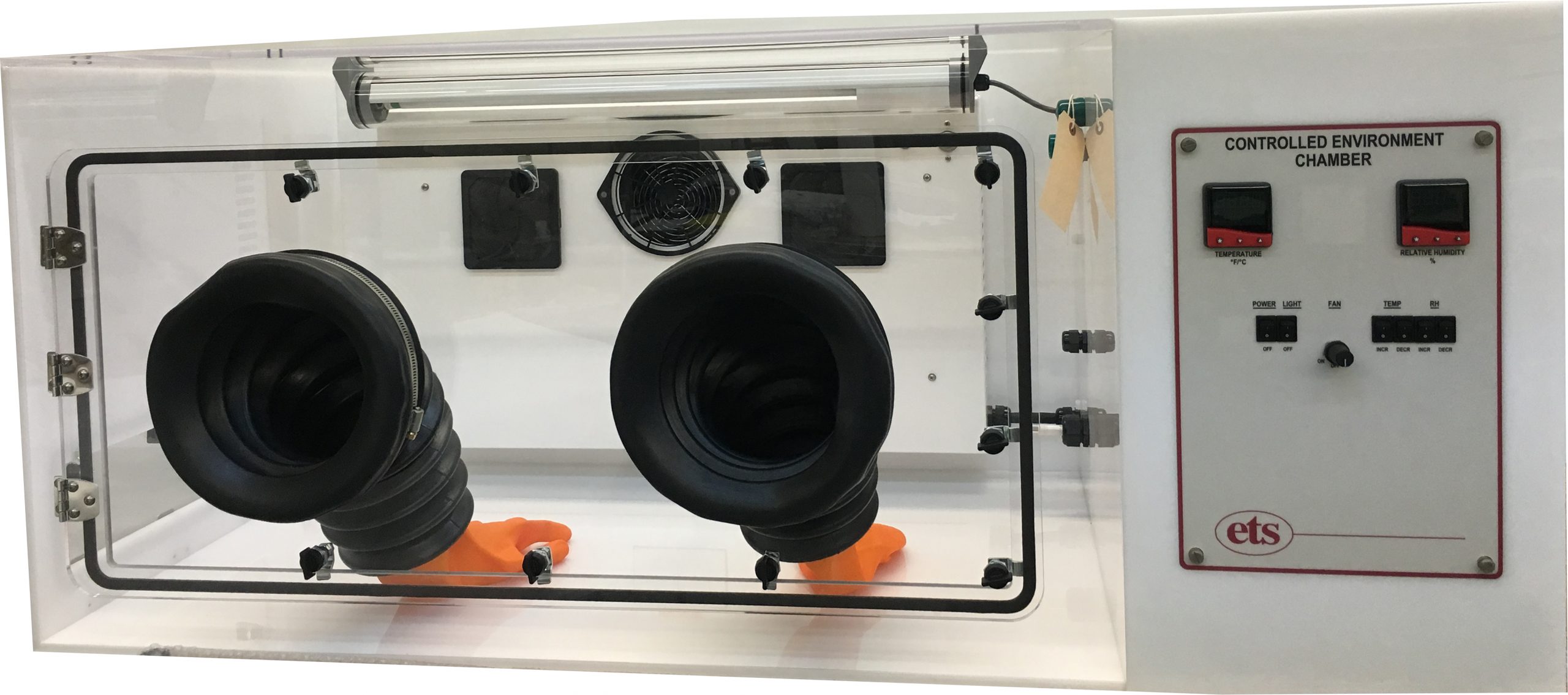

M 5532 Series – Large Integrated Temperature and Humdity Glovebox Chamber
Overview:
The Model 5532 is designed to accommodate equipment and material requiring a precise, stable environment, excellent visibility, and a large internal work area (9.4 cu ft., 266 L). The chamber is fabricated using clear and white acrylic construction, featuring built-in controls with state-of-art operating systems. Typical uses include weighing, testing, storage, fabrication, and conditioning for product development, biomedical, pharmaceutical, automotive, electronic, electrostatic, military, food product analysis, university research and other applications. Configurable options include humidification, dehumidification, heating and cooling systems enabling the system to be configured to maintain humidity from <5% to 95% RH and temperature from -35ºC to 50ºC (-31ºF to 122ºF) when the unit is placed in a 23ºC ambient environment location.
Features:
- Dimensions: 52” x 22” x 25.25”
- Internal Usable Space: 38.5″W x 19.75″D x 21″H
- 3/8 Inch clear & white acrylic construction
- Dual microprocessor PID controllers
- Integrated internal lighting
- Integrated GFIC AC power outlet (U.S. only)
- Two Doors with ½-turn latches
- Front door opening: 32″x14″ (81×36 cm)
- Side door opening: 14″x4″ (36×10 cm)
- Standard 1.5″ dia. cable pass-through, hose barbs & compression fittings
- Custom configurations available:
- Heating, Cooling, Humidification, and Dehumidification options
- Multiple Ramp/Soak cycles and CalGraphix software for tracking & control
- Available with 8″ Ports or Solid Front Door
